Position:Home > Product Center > Dental Furnace > Zirconia Sintering Furnace

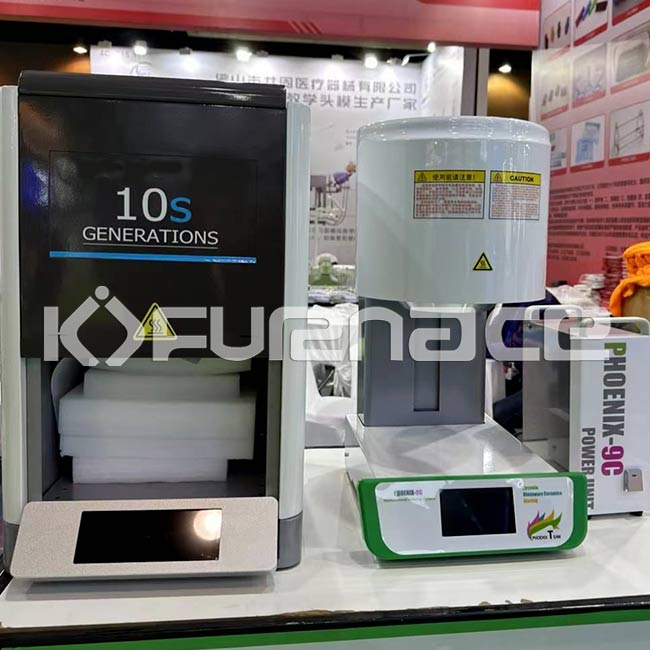

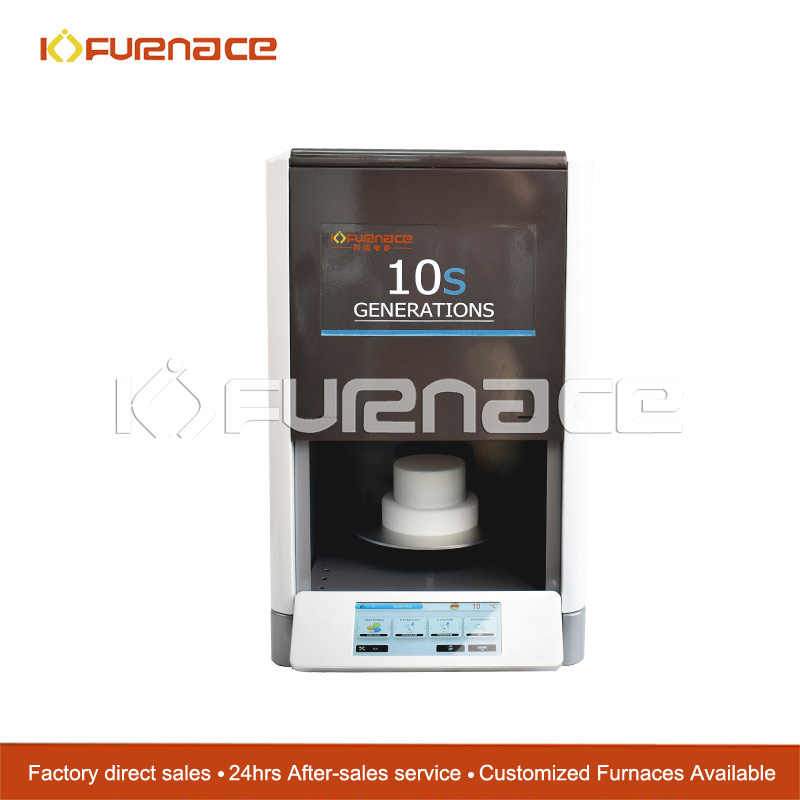

KJ-Y1530-10S Fast sintering furnace
  • KJ-Y1530-10S Fast sintering furnace
  • KJ-Y1530-10S Fast sintering furnace
  • KJ-Y1530-10S Fast sintering furnace
  • KJ-Y1530-10S Fast sintering furnace
  • Model:

    KJ-Y1530-10S Fast sintering furnace

    Description:

    Main Feature:
    ●Voice prompt function.
    ●High quality temperature automatic adjustment function, to ensure the
    actual temperature error within + / - 2 degrees....


    Main Feature:
    ●Voice prompt function.
    ●High quality temperature automatic adjustment function, to ensure the
    actual temperature error within + / - 2 degrees.
    ●It is easy to operate and small in size. At present, it is one of the smaller
    furnaces in the world.
    ●Precision stepper motor drive, smooth free operation and no jitter.
    ●High purity silicon carbide rod / silicon molybdenum rod heater.
    ●Hyperbolic sintering system, automatic temperature calibration before
    each sinter process.
    ●Low noise tray and the speed is programmable.
    ●Fast sintering zirconia with full anatomical morphology.
    ●The pre-drying time can be set for baking zirconia denture.
    ●The maximum temperature can be set to 1550 ℃.
    ●The maximum heating rate is 200 C/min.
    ●There is no need to preheat the sintering furnace in advance. Ready to
    use in any time.
    ●Automatic fast cooling technology.
    ●Up to 30-50 restorations (90mm tray) can be sintered.
    ●True color touch screen, easy to operate.
    ●50 custom programs and built-in programs.
    ●Status indication.

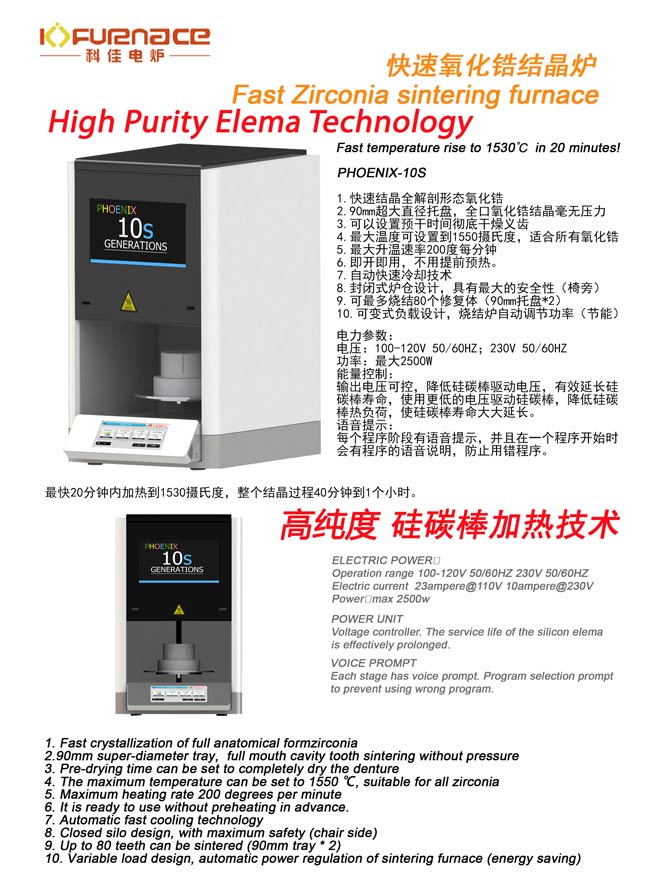

    fast sintering furnace

    features
    • Maximum temperature set to 1550℃. Maximum heating rate of 200℃/min. 30-50 restorations (90mm tray) can be sintered at a time.

    • No preheating of the sintering furnace required. Ready to use immediately. Automatic rapid cooling technology.

    • Simple operation and compact size. Currently one of the smallest sintering furnaces in the world.

    • High-purity silicon carbide/molybdenum silicon rod heater. Rapid sintering to obtain zirconia with complete anatomical morphology.

    • Precision stepper motor drive for smooth, vibration-free operation. Low-noise tray with programmable speed.

    • True-color touchscreen for easy operation. Voice prompt function.

    Technical Parameters


    Standard Technician Data:

    OPERATION:
    The velocity of temperature increasing: 200℃/min max.
    The max temperature: : 1550℃ max
    The time which can be kept at the max temperature: 2 H

    ELECTRIC POWER:
    Operation range:100-120V 50/60HZ 230V 50/60HZ Electric current:30ampere@110V 20ampere@230V Power:max 3000w

    TYPICAL SPECIFICATION:
    WXDXH :width 36cm Depth 46cm Height 59cm Usable measure (firing chamber)::9cm
    Net weight:40Kg
    Weight include the package:45Kg
    AMBIENT CONDITIONS

    Indoor use
    Ambient temperature: 2°C to 40°C
    Relative humidity 80% at 31°C
    Maximum altitude: 1500 m (Special Model:3500m)
    Rated voltage fluctuations must not exceed plus/minus 10% of the rated voltage

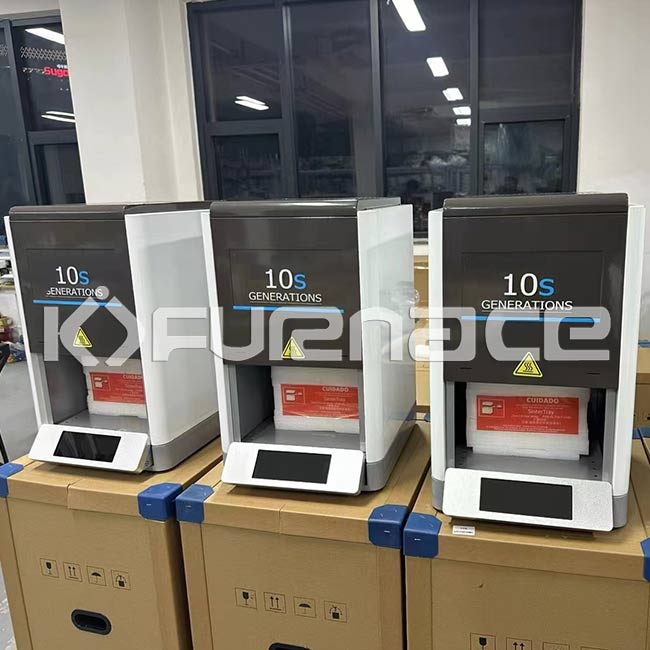

    Actual shipping photos:
    dental fast sintering furnace
    dental fast sintering furnace
